Your AC Is More Than Just a Box on the Wall
A split AC system is a matched group of parts that cools your house by moving heat from indoors to outdoors. One section sits outside, and one sits inside, but the real story is how those pieces work together under load, especially during an Arizona summer.
Homeowners often focus on the equipment they can see. In practice, comfort depends just as much on the parts you do not notice right away. The refrigerant line set has to be installed correctly. Airflow has to be right. Ducts have to deliver the air the system is trying to produce. A quality unit can still cool poorly if those details were rushed.
The outdoor unit usually contains the compressor and condenser coil. The indoor side typically includes the evaporator coil and the air handler or furnace cabinet, depending on the setup. Those sections are tied together by refrigerant lines, electrical controls, a condensate drain, and, in ducted homes, the supply and return duct system. If you want a closer look at the equipment outside, this guide to parts of an outdoor AC unit helps fill in that side of the picture.
What the split design actually does
Your AC removes heat from indoor air, then releases that heat outdoors. That is the job.
When the system is installed well, you get steady airflow, even temperatures, manageable humidity, and reasonable run times. When one part is off, the symptoms start to show up in ways homeowners notice fast. Rooms stay warm in late afternoon. Airflow drops. The system runs longer than it should. Ice forms where it should not. Water appears near the indoor unit.
That split layout also makes troubleshooting more practical because the symptoms usually point to a specific part of the system:
- Weak airflow at the vents often points to the indoor side, the filter, the blower, or the duct system.
- Warm air with the thermostat calling for cooling can point to the outdoor section, refrigerant problems, or electrical faults.
- Water around the unit usually involves the condensate drain, coil condition, or airflow problems.
- High electric bills with no clear breakdown often trace back to sizing, duct leakage, poor airflow, dirty coils, or line set and installation issues.
Why homeowners should care about the parts
Knowing the major parts helps you ask better questions and avoid bad assumptions. I have seen plenty of systems blamed on the brand when the underlying problem was a crushed return, an oversized unit, a poorly brazed line set, or attic ducts leaking cool air before it ever reached the room.
That matters even more in Arizona. Long cooling cycles expose weak duct design, marginal airflow, poor refrigerant charging, and installation shortcuts much faster than milder climates do. Cobre Valley Air puts attention on those details because long-term efficiency and reliability usually come down to installation quality as much as equipment quality.
A split system is only as strong as the way its parts work together.
The Outdoor Unit Your Home's Heat Engine

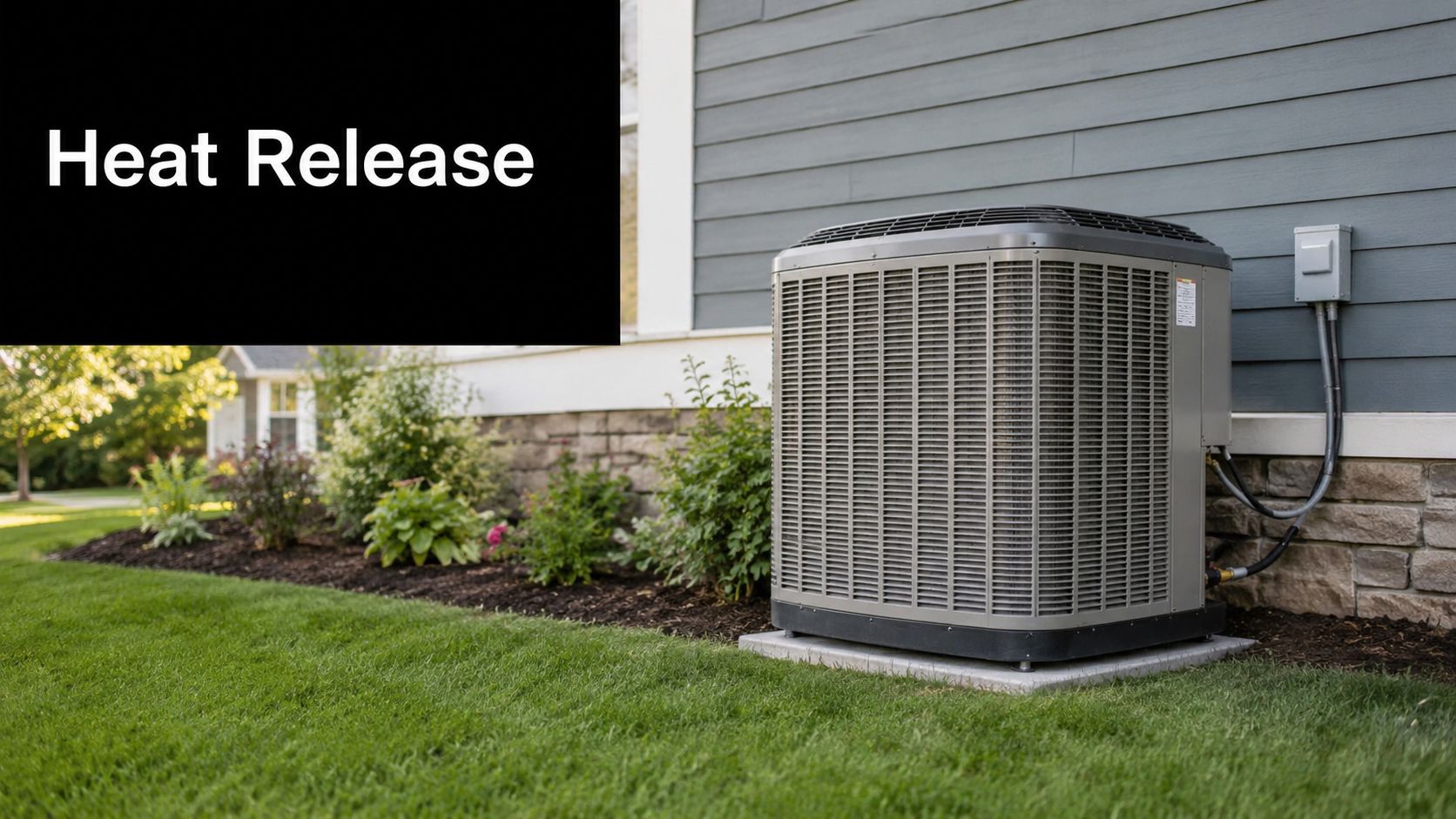

The outdoor unit does the hard, hot work. Its job is to dump the heat your home no longer wants. If this section of the system can't reject heat efficiently, the indoor side can't keep up no matter how clean your filter is.
For homeowners who want a deeper look at the hardware outside, this guide to parts of an outdoor AC unit is a useful companion.
Compressor and condenser coil
The compressor is the pressure builder. In a split AC system, the compressor raises the refrigerant's pressure and temperature, and the condenser coil then rejects indoor heat to outdoor air as the refrigerant condenses back to liquid, as explained in this Carrier technical paper on the vapor-compression cycle.
In plain terms, this is the part of the system that takes the heat collected indoors and gets rid of it outside.
When the compressor is struggling, homeowners often notice symptoms like:
- Warm air indoors even though the system sounds like it's on
- Buzzing, humming, or hard-start behavior at the outdoor unit
- Frequent shutoffs on very hot afternoons
- A breaker trip that repeats after reset
A failing compressor isn't a DIY repair. Neither is electrical diagnosis inside the condenser cabinet. What you can do is observe the pattern. Does the fan spin? Does the outdoor unit click but not start? Does it cool for a short time and then stop? Those details help a technician narrow the issue faster.
The condenser fan matters more than people think
The condenser fan pulls air across the outdoor coil so heat can leave the refrigerant. If the fan motor is weak, the blade is damaged, or the coil is packed with debris, heat rejection suffers fast.
That can lead to problems that feel random from inside the house. Maybe the AC works fine in the morning but struggles later. Maybe it starts cooling and then falls behind. Sometimes homeowners blame the thermostat when the issue is that the outdoor unit can't breathe.
Common things to look for outside include:
- Leaves or trash against the coil
- Vegetation growing too close to the cabinet
- Noticeable dirt buildup on the fins
- A fan blade that isn't spinning normally
- Rattling panels or vibration
Keep the area around the condenser clean and open. Good airflow outside is just as important as good airflow inside.
What works and what doesn't
Some homeowner habits help. Others create repair calls.
What works:
- Rinsing loose dirt from the outdoor coil gently, with power off and without crushing the fins
- Keeping the unit clear of yard debris
- Listening for changes in normal startup and running sounds
- Checking after storms for clogged fins or wind-blown debris
What doesn't:
- Using a pressure washer on the coil
- Stacking items around the unit
- Ignoring a fan that's intermittently stopping
- Resetting breakers over and over without finding the cause
A lot of “bad AC” complaints start here. The outdoor unit may still run, but if it can't reject heat efficiently, comfort drops and component stress climbs.

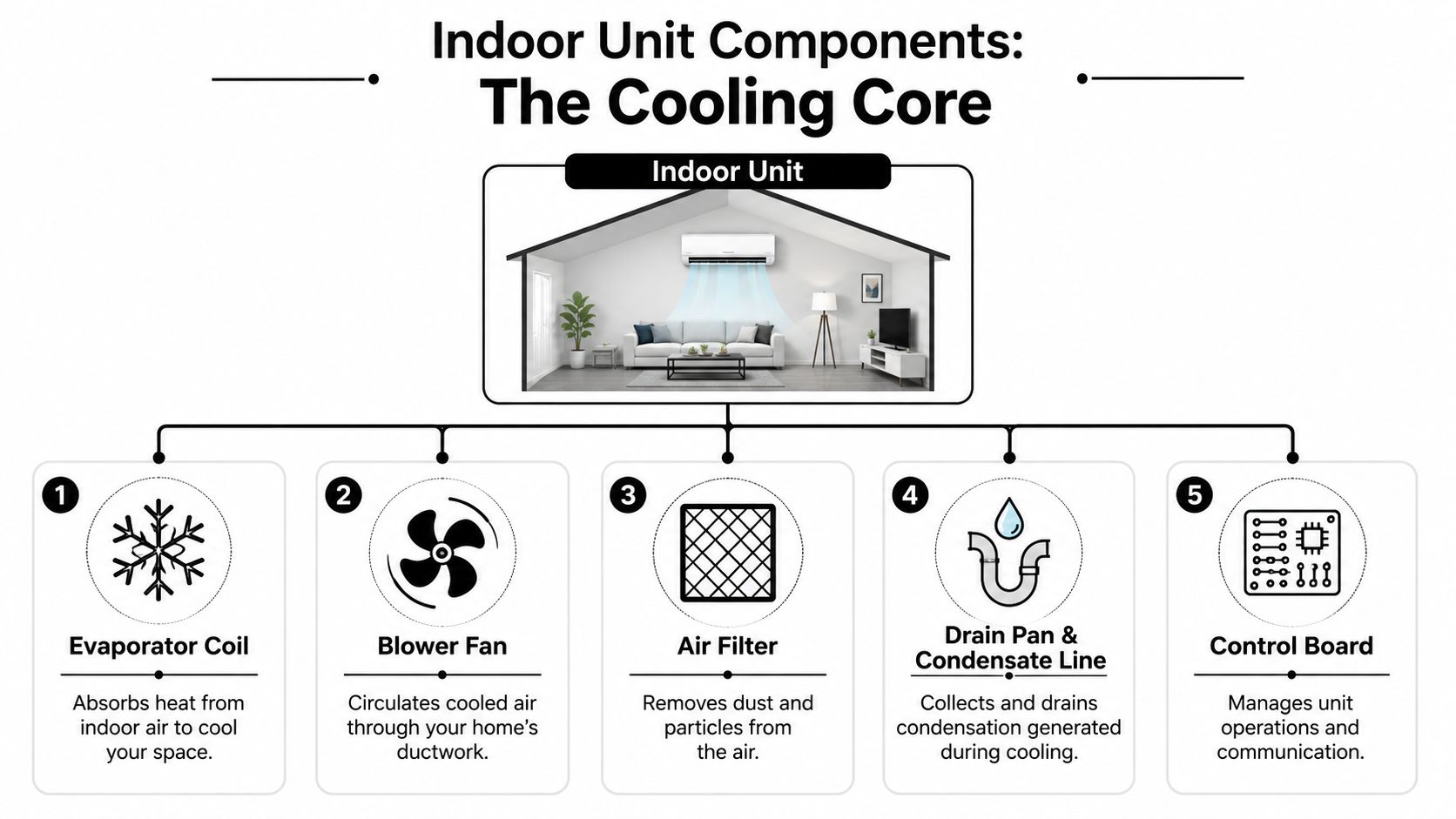

The Indoor Unit Where the Cooling Magic Happens
The indoor unit is where your home's air gets cooled and dehumidified. This is the side people live with every day, but it's also where neglect shows up fastest. Weak airflow, musty odor, water around the unit, and rooms that never seem comfortable often start here.
Evaporator coil and expansion device
The evaporator coil is the cold coil inside the home. The expansion valve or metering device drops refrigerant pressure before it reaches that coil. That pressure drop causes flashing and lowers the saturation temperature so the coil can absorb heat and remove moisture from the airstream, as outlined in Stout Energy's explanation of the expansion valve and evaporator process.
That's the cooling event. Warm return air passes over the cold coil. Heat moves into the refrigerant. Moisture also comes out of the air and drains away through the condensate system.
If this part of the system has trouble, you might notice:
- The house feels muggy
- Ice on the refrigerant line or coil cabinet
- Cooling starts, then fades
- Water around the indoor unit
A frozen coil is one of the most misunderstood symptoms in residential HVAC. People often assume “it's extra cold, so that's good.” It isn't. Freeze-up usually points to an airflow problem, a metering issue, or refrigerant-side trouble that needs proper diagnosis.
Blower assembly and air filter
The blower motor and fan move air across the evaporator coil and through the ductwork. If the blower can't move enough air, cooling drops even if the refrigerant side is working.
The air filter is the easiest part for a homeowner to monitor, and it has an oversized impact on performance. A clogged filter restricts airflow, stresses the blower, and can contribute to coil freeze-up. In houses with dust, pets, remodeling activity, or neglected return systems, filter problems show up quickly.
Here's the simple version:
| Indoor part | What it does | What failure feels like |
|---|---|---|
| Evaporator coil | Absorbs heat and moisture | Warm or muggy air |
| Expansion device | Controls refrigerant feed into coil | Poor cooling or freeze symptoms |
| Blower motor | Pushes conditioned air through ducts | Weak airflow |
| Air filter | Protects airflow path and coil | Reduced comfort, strain on system |
A dirty filter doesn't just make the air dirtier. It changes how the whole system operates.
Drainage and control issues
The indoor unit also has a drain pan and condensate drain line to carry away the water removed from the air. When that drain clogs, water can back up into the pan and leak around the air handler or furnace cabinet.
The indoor side also contains controls that tell the system when to run and how to respond. If those controls lose communication, cycle erratically, or fail to energize components properly, the symptoms can look like bigger equipment failure.
Watch for these warning signs:
- Water stains near the unit or ceiling below it
- Musty smell at startup
- Airflow from some rooms but not others
- System turns on and off unpredictably
- A filter that gets dirty unusually fast
This is also where duct design starts to matter. A strong blower can't fix badly sized ducts, crushed flex runs, disconnected returns, or poor register placement. If airflow is wrong, comfort will be inconsistent no matter how new the equipment is.
The Unseen Heroes Connecting Your System
Most homeowner explanations stop at “indoor unit” and “outdoor unit.” That's incomplete. Some of the most important parts of a split AC system are the components that connect those two pieces and support proper operation.

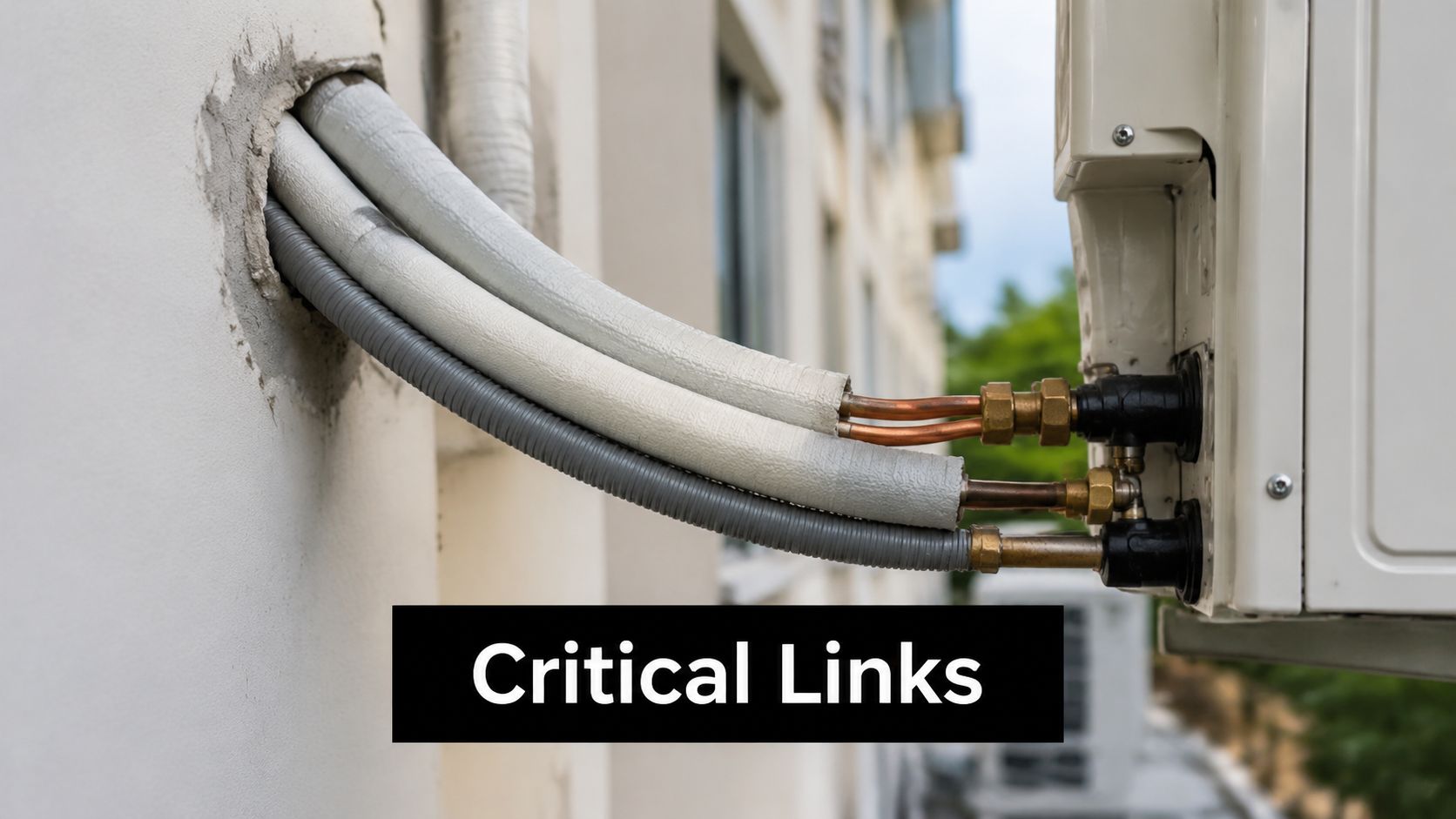

The line set
The line set is not just “some copper pipes.” Many generic explainers leave out that the line set bundles refrigerant tubing plus electrical and communication lines, and proper line sizing is critical for operation and efficiency, as noted in Total Home Supply's explanation of mini-split components.
That matters because installation quality lives here. A system can have good equipment and still perform poorly if the line set is wrong for the application, routed poorly, damaged, contaminated, or connected carelessly.
Problems in this area can lead to:
- Reduced cooling performance
- Communication faults between components
- Premature wear from improper operating conditions
- Hard-to-diagnose intermittent issues
Drain line and wiring
The condensate drain line handles the water the indoor coil removes from your air. If it clogs, water goes where it shouldn't. In attics, closets, and mechanical spaces, that can mean damaged ceilings, stained drywall, or soaked insulation.
The electrical and communication wiring acts like the system's nervous system. Thermostat signals, safety controls, and unit-to-unit communication all depend on those connections being correct and stable.
A homeowner won't usually diagnose these with certainty, but there are clues:
| Connection part | Common symptom | Why it matters |
|---|---|---|
| Line set | Poor cooling, odd performance | Refrigerant flow has to be correct |
| Drain line | Water leak indoors | Moisture needs a safe exit path |
| Control wiring | Intermittent operation | The system can't respond properly |
| Power wiring | No-start or shutdown issues | Components need reliable electrical supply |
When two similar systems perform very differently, the hidden difference is often in the installation details, not the nameplate.
Why duct design belongs in this conversation
Strictly speaking, ductwork isn't part of every split system. Ductless systems are different. But in a standard central split AC, duct design affects how well the indoor unit can deliver what the refrigeration side produces.
Undersized returns, leaky supply runs, and poor airflow balancing create comfort complaints that homeowners often blame on the condenser or thermostat. The equipment may be cooling correctly. The air just isn't being delivered well.
That's why experienced technicians look beyond the obvious boxes. Good performance depends on the whole path. Refrigerant path, airflow path, drainage path, and control path.

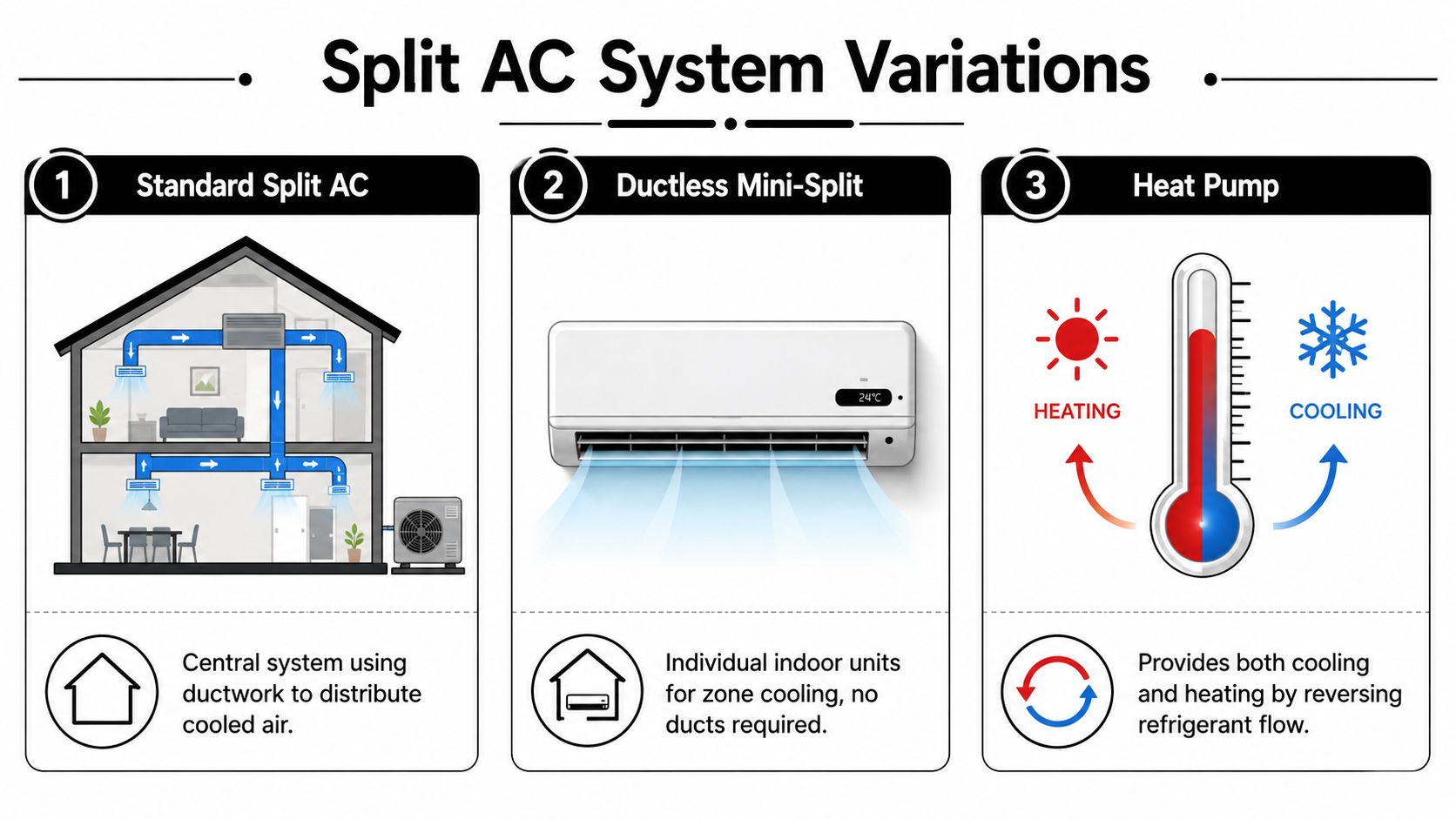

System Variations Ductless Mini Splits and Heat Pumps
Not every split system looks the same in the home. Two common variations are ductless mini-splits and heat pumps. They use the same basic split-system idea but apply it differently.
If you're comparing ductless options for a room addition, garage, or home without practical duct access, this overview of what a ductless mini-split system is helps frame the decision.
Ductless mini-splits
A ductless mini-split still has an outdoor condenser/compressor and one or more indoor air handlers connected by refrigerant lines. The difference is that the air is delivered directly into the room instead of being pushed through a central duct system.
One reason these systems fit retrofits so well is their installation geometry. Daikin notes that the conduit containing refrigerant lines and wiring can require a hole as small as four inches through an exterior wall, which is described in Daikin's ductless mini-split parts guide.
That makes mini-splits practical in places where ductwork would be disruptive or expensive to add, such as:
- Room additions
- Garages and workshops
- Older homes with no usable duct path
- Bonus rooms with uneven comfort
- Small apartments or targeted zones
What works well with mini-splits is targeted comfort. What doesn't work is treating them like a magic fix for every comfort issue without thinking through room layout, indoor unit placement, and controls.
Heat pumps and multi-zone systems
A heat pump looks a lot like a standard split AC from the outside, but it includes a reversing valve that changes refrigerant flow so the same core system can cool or heat. That's a smart fit for many Arizona homes because one system can handle both sides of the comfort equation.
Multi-zone systems add another layer. One outdoor unit can serve several indoor units, sometimes up to eight depending on the model, according to SkillCat's discussion of split-system components and controls.
That flexibility is useful, but it comes with trade-offs:
- More zone control can improve room-by-room comfort
- More indoor units means more control complexity
- Troubleshooting gets more layered
- Airflow and load balance matter more
For homeowners, the practical lesson is simple. More features don't automatically mean better results. The right system is the one matched to the house, the duct design if ducts are involved, and the way the rooms are used.
AC Maintenance and When to Call Cobre Valley Air
Understanding the parts of a split AC system is useful only if it helps you keep the system running and know where the line is between homeowner maintenance and professional repair. That line matters. Some tasks are safe and smart for homeowners. Others involve refrigerant, electrical components, or diagnostics that shouldn't be guessed at.
What you can do yourself
A few habits prevent a lot of service calls.
- Check the air filter regularly. If it's loaded with dust, replace it with the correct size and type for your system.
- Keep the outdoor unit clear. Remove weeds, leaves, and debris that block airflow.
- Look for water where it shouldn't be. Moisture around the indoor unit often points to drainage trouble.
- Pay attention to sound changes. New buzzing, rattling, or hard-start noises are useful warning signs.
- Monitor airflow at the vents. If several rooms suddenly feel weak, don't ignore it.
For scheduled upkeep, many homeowners also look into a professional AC tune-up so coils, drains, electrical connections, and operating conditions can be checked as a system rather than piece by piece.
What should stay in professional hands
Leave these jobs to a licensed HVAC technician:
- Refrigerant diagnosis or charging
- Electrical testing inside cabinets
- Compressor, motor, or capacitor replacement
- Metering device diagnosis
- Control board troubleshooting
- Duct redesign or airflow correction
Those problems aren't just complicated. They can also be expensive when misdiagnosed. Replacing a part without fixing the actual cause often creates a second repair call.
If the symptom involves refrigerant, high voltage, repeated breaker trips, or ice on the system, it's time to stop troubleshooting and schedule service.
